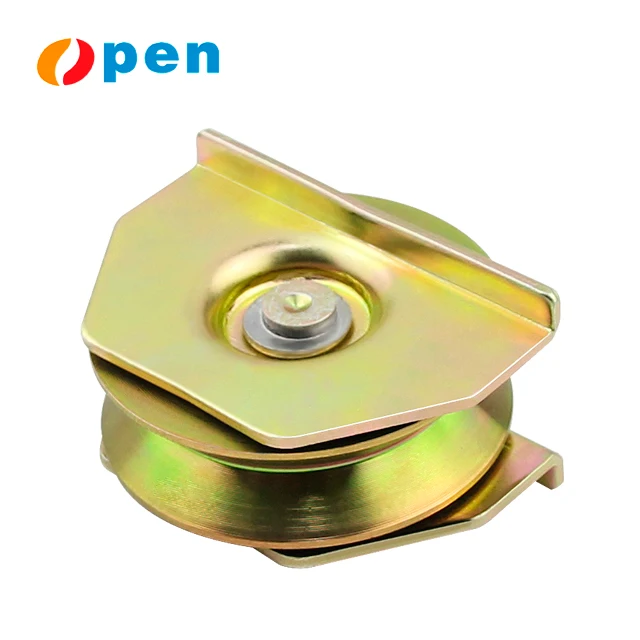

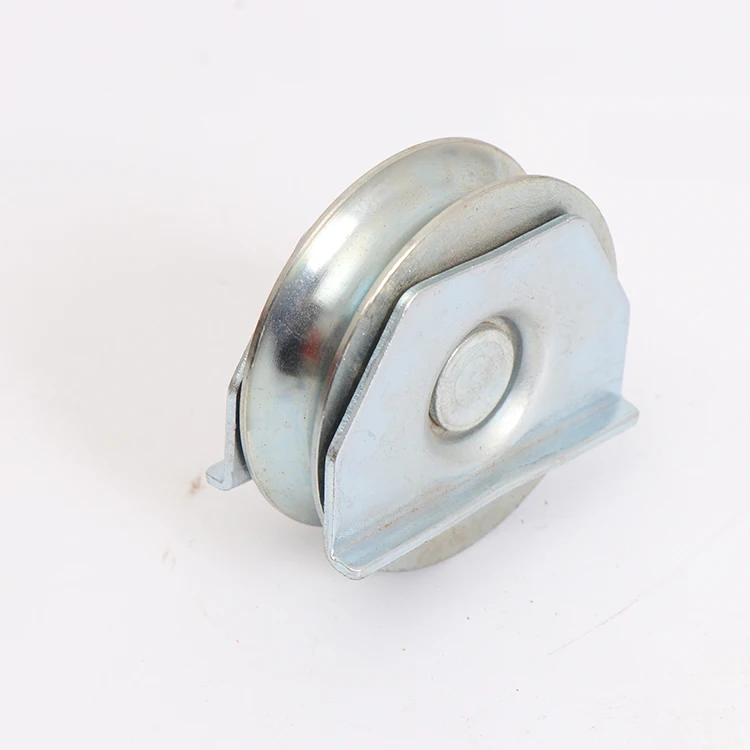

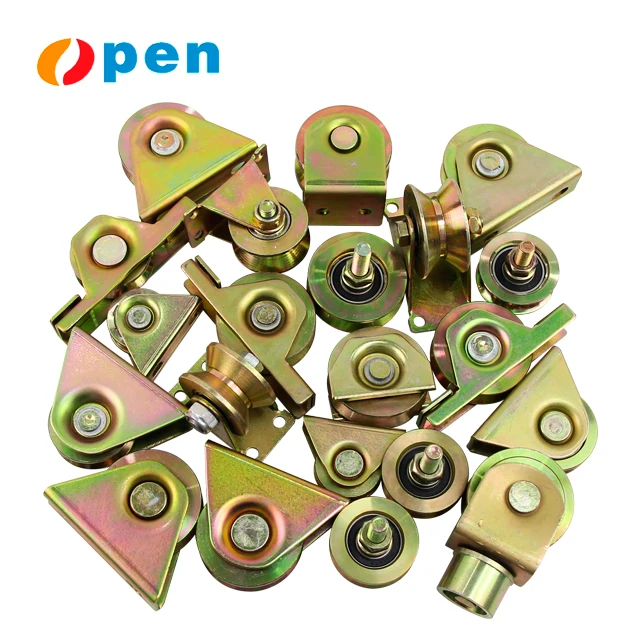

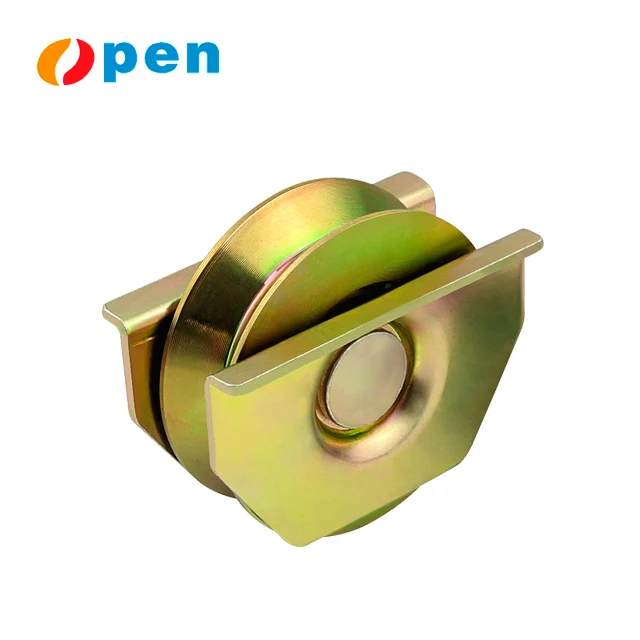

Y/U/V groove Steel Sliding Gate Wheel ,heavy Duty Sliding Gate Roller Wheels
Our mainly the production of sliding gate wheel, sliding gate roller, sliding gate pulley, sliding door roller, slinding door wheel, sliding door pulley, meal dustpan, nylon roller, nylon wheel, sliding gate track, sliding door track. industrial hardware and so on.
- Overview
- Recommended Products

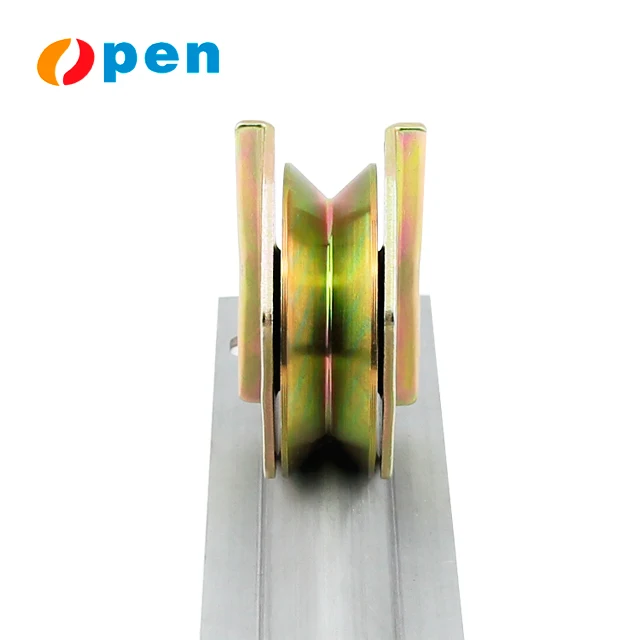

U-groove caster wheels are designed to guide equipment by rolling on inverted angle iron track. Elevated track minimizes problems caused by floor debris. The relief groove at the base of the "U" equalizes the load on each face of the angle. When not operating on track, the considerable wheel tread on each side of the Y-groove allows for use on smooth floors. It is important that if more than one track is used they are parallel, straight and level.
Different sizes are available.
| Item | D(mm) | A(MM) | B(MM) | N.W(G) |
| JSY50 | 48 | 15 | 28 | 160 |
| JSY60 | 58 | 17 | 28 | 305 |
| JSY70 | 68 | 20 | 29 | 540 |
| JSY80 | 78 | 20 | 29 | 680 |
| JSY90 | 88 | 20 | 29 | 980 |
|
JSY100 |
98 | 20 | 30 | 1215 |
| Item | D(MM) | A(MM) | B(MM) | N.W(G) |
| JDY70 | 68 | 23 | 33 | 520 |
| JDY80 | 78 | 23 | 33 | 700 |
| JDY90 | 88 | 24 | 35 | 1120 |
| JDY100 | 98 | 24 | 37 | 1310 |
| Name | sliding gate wheel |

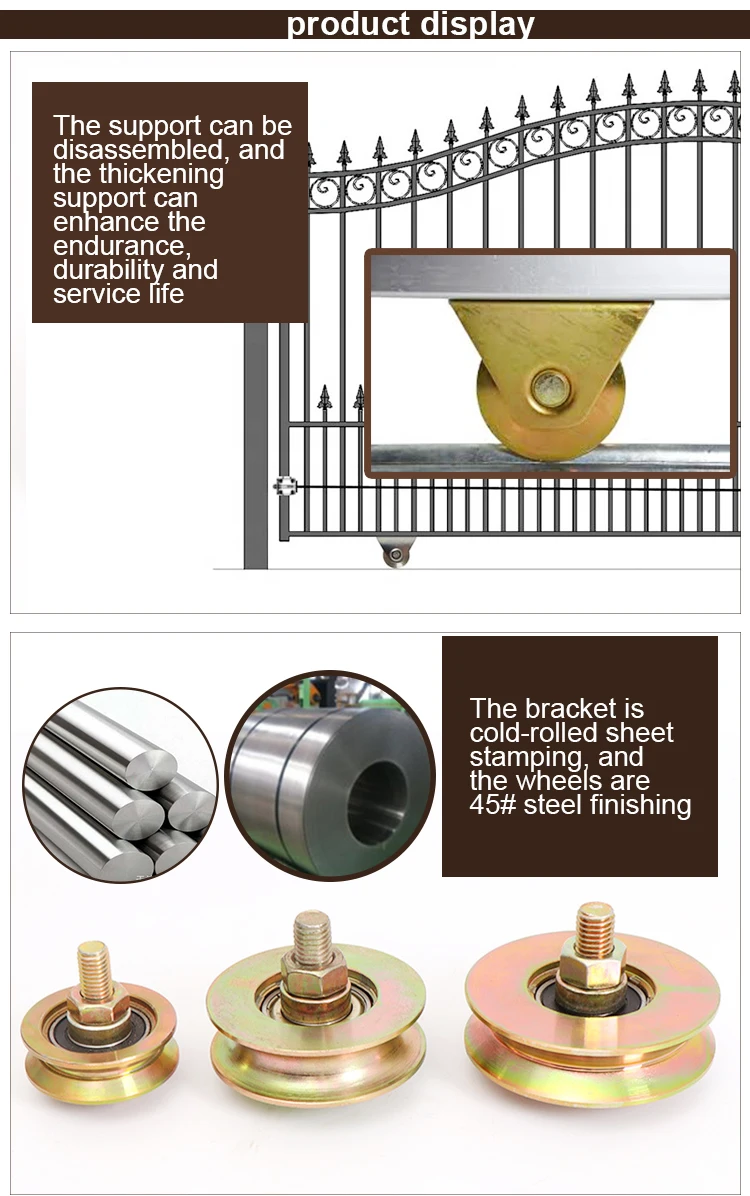

| Material | the bracket is made of cold rolled sheet stamping, and the wheels are made of 45 steel |
| Specifications | various specification |
| Adevantage | Smooth, quiet, rust proof |

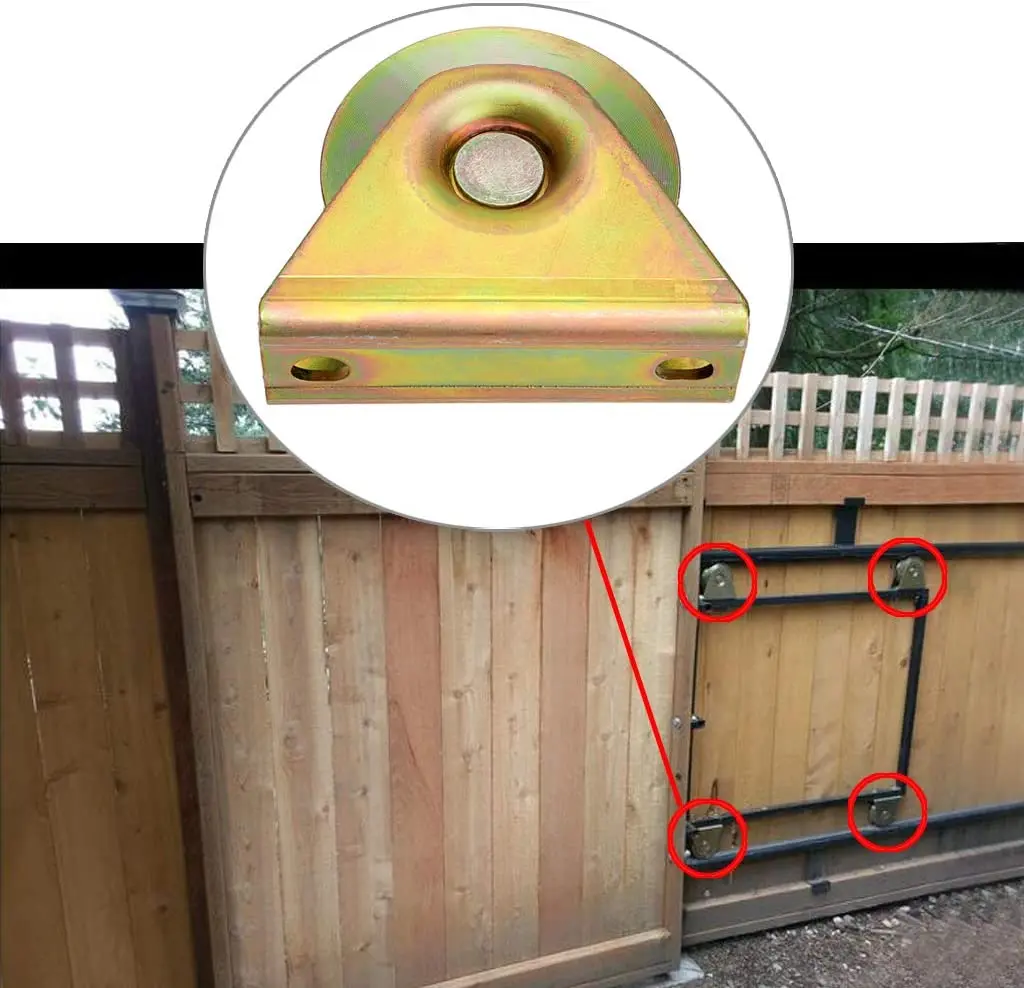

| Use | industrial door field;assmbly line operation in the factory;use with special slide rails for logistics storage pendants |
