Poor Foundation and Soil Preparation for Cantilever Sliding Gates
Insufficient footing depth and inadequate soil compaction causing post settlement
Gate posts for cantilever sliding systems often fail because of shallow footings or soil that wasn't packed tight enough. Problems start happening when freezing temperatures reach deeper than the footing itself or when the surrounding dirt just collapses over time. What happens next? The posts move up and down, which throws off everything else connected to them. Gates won't slide smoothly anymore and parts like tracks and rollers get worn out faster than they should. If we want to avoid these issues with settling at different rates across the site, the footings need to go well beneath where frost typically forms underground. Most places require around 3 to 4 feet of depth in colder regions, plus engineers usually check the ground conditions before pouring concrete to make sure it's stable enough underneath.
Undersized or unreinforced concrete footings failing under cantilever sliding gate loads
The weight distribution of cantilever gates creates serious stress points at the support posts something that weak or poorly built footings simply can't handle. When there's not enough steel inside those concrete blocks, cracks start forming as the material stretches too far, which often leads to complete collapse of the gate post without warning. Take a typical 20 foot cantilever gate for example Structural engineers generally recommend footings measuring at least 24 inches by 24 inches deep and 48 inches wide with a #4 rebar framework throughout. Getting these measurements right matters because good footings actually channel all that pressure down into solid ground instead of letting it build up until something breaks. Homeowners who skip proper installation end up spending thousands fixing damaged structures later on when they should have invested upfront in quality construction from day one.
Incorrect Track and Rail Specification for Cantilever Sliding Gates
Proper track and rail selection is fundamental to cantilever sliding gate performance. Compromising on these components leads to operational failures, accelerated wear, and safety hazards.

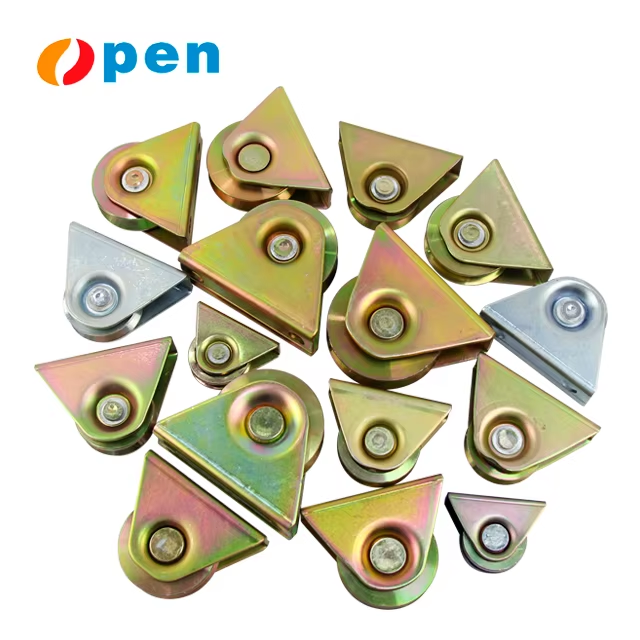

Track misalignment, poor leveling, and resulting binding or premature rail wear
Small problems with track leveling or misalignment can lead to big headaches down the road. When gates are put on tracks that aren't level, they tend to get stuck as they move along, requiring way more force than normal whether someone is pushing them manually or relying on motors. The extra friction from this situation really takes a toll on equipment. Engineering studies show roller and rail components wear out about half as fast under proper conditions compared to when there's binding happening. And it doesn't stop there either. The whole drive system gets stressed out too, which means higher chances of motor failures over time. That's why laser leveling at installation remains so important. Technicians should check the entire length of the track for proper alignment. Industry standards typically allow no more than 3 millimeters of variation across a 6 meter span. Sticking to these specs makes all the difference in achieving that smooth operation everyone wants without unnecessary resistance.
Using non-structural or undersized rail profiles incompatible with cantilever sliding gate weight and span
Choosing rails purely because they're cheap instead of looking at how strong they need to be can lead to disaster down the road. Cantilever systems work differently compared to regular swing or overhead gates since all the weight hangs off one side, putting extra pressure right on that spot where the rail meets the ground. When rails aren't big enough for what they have to hold, they start bending when loaded up. Thin metal tubes will eventually give way after repeated use too. If someone needs a gate that stretches beyond 8 meters across, going with reinforced box section rails at least 6mm thick makes sense for keeping things stable and preventing accidents. The best approach? Match the rail size exactly to both the overall weight of the gate and how far it spans between supports. Engineering charts exist for good reason here. Skipping these calculations means running serious risk of collapse during high winds or over time as wear builds up.
Structural Imbalance and Improper Gate Overhang Ratio
Excessive overhang-to-post ratio inducing torsional stress and post failure in cantilever sliding gates
Getting the balance right between overhang and post size matters a lot for cantilever sliding gates. Most professionals agree that the counterweight should cover at least half the width of the gate opening to spread out all those forces properly. What happens when folks ignore these guidelines? Well, the stress builds up around the support posts and can actually triple the pressure on them because of how leverage works. This kind of twisting action weakens welds first, then starts eating away at metal until eventually everything gets warped out of shape. We've seen plenty of cases where gates collapse completely after just three to five years of operation. To avoid this mess, engineers need to do proper math based on how much weight different parts of the gate carry. Good foundation design matters too, along with extra bracing where needed. It's not rocket science but definitely requires attention to detail during installation.
Omitting Critical Safety Components: End Stops and Redundancies
Unanchored, missing, or mispositioned end stops risking derailment of cantilever sliding gates
End stops are basically the last line of defense against cantilever sliding gates going past where they should. When these stops go missing, aren't properly attached, or just sit in the wrong spot, things get dangerous fast. The gate can keep moving after it reaches the end of the track because of all that built up momentum. We've seen situations where gates actually come off completely, creating major problems for anyone nearby, not to mention damage to cars and buildings. Good quality stops need solid anchoring points right at those exact travel limits. Some modern designs even include special materials that absorb some of the impact force when the gate hits them. Many installations also incorporate electronic limit switches as extra protection. Safety data shows that about one out of every four gate accidents happens because someone didn't install these stops correctly. So getting the specs right, making sure they're firmly attached, and placing them exactly where they belong isn't just good practice - it's absolutely necessary.
FAQs
What is the ideal footing depth for cantilever sliding gates?
In colder regions, it is generally recommended that footings go at least 3 to 4 feet deep to prevent issues related to frost and settling.
What are the significant consequences of track misalignment?
Track misalignment can lead to gates getting stuck, resulting in increased wear on the equipment and a higher likelihood of motor failures.
How important are end stops in cantilever sliding gates?
End stops prevent gates from going past their intended stopping point, reducing the risk of accidents, structural damage, and derailment.
